Performance Testing of HDDs, SSDs, and NVMe SSDs Using fio

The fio (Flexible I/O Tester) utility is used to measure the actual performance of disk devices in Linux-based operating systems. It is currently the industry standard among system administrators. The utility performs two actions: it simulates real-world load on a specified device and measures the necessary metrics.
Using fio, you can simulate various types of load:

• Random read or write
• Sequential reading or writing
• Multithreading
• A mixed load in a specified ratio

We will look at some basic examples for testing different types of storage devices and discuss the expected results of these tests.

Installing fio

The fio utility has long enjoyed a good reputation and is included in the system repositories of many Linux distributions. All commands in this article are executed on a dedicated server provided by Virterion.com as the root user. If you are logged in as a regular user, you may need to use sudo to run the commands.

Debian и Ubuntu

apt install fio

RHEL, AlmaLinux, Rocky Linux

dnf install fio

Arch Linux

pacman -S fio

FreeBSD

pkg install fio
Checking the installed version:
fio --version

Running Tests

The advantage of fio is that we can specify the type and intensity of the load ourselves. Now we'll look at some test options, including verifying that the drive meets the manufacturer's specified specifications.
First, you need to create a directory where the utility will save the files it needs to work with. This directory must be located on the disk being tested. You can create it using the standard command:
mkdir /fio

Random Reading

Many manufacturers list four types of performance metrics that a device meets: the maximum number of random read and write operations, and the sequential read and write speeds. Let's start with the first one, since for a production server, it is often the number of IOPS that is the bottleneck.

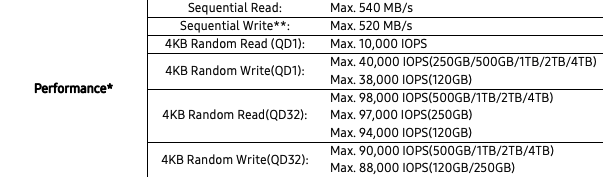

Manufacturer-Specified Specifications:

The command with the same parameters (4k block size, random read, 32 request queue):
fio --name=4k-rnd-read --rw=randread --directory=/fio --direct=1 --bs=4k --ioengine=libaio --iodepth=32 --runtime=60 --numjobs=1 --time_based --size=5G

• --name=4k-rnd-read - test name
• --rw=randread - test type (randread - random reading)
• --directory=/fio - working directory
• --direct=1 - direct disk access, bypassing the system cache
• --bs=4k - block size
• --ioengine=libaio - mechanism for interacting with the system kernel
• --iodepth=32 - queue depth
• --runtime=60 - time allotted for the test
• --numjobs=1 - number of test threads
• --time_based - end the test after the specified time has elapsed
• --size=5G - test file size

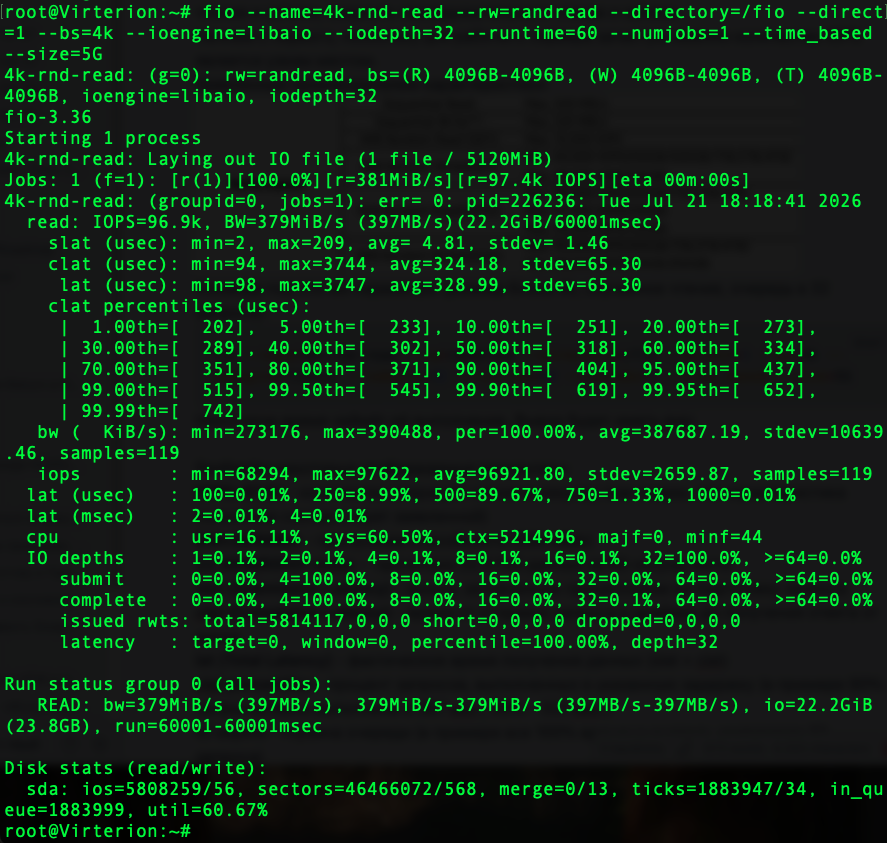

It will take some time to complete. The output will look like this:

Let's take a look at some of the results displayed:

IOPS=96.9k	number of read operations per second (as we can see, this specification matches the advertised value exactly)
BW=379MiB/s	throughput (397 MB/s)
22.2GiB/60001msec	22.2 GiB of data were read during the 60-second test
slat (Submission Latency)	the time the processor spent preparing the request
clat (Completion Latency)	the time from sending a request to the driver until receiving a response from the disk
lat (Total Latency)	actual time of data receipt (slat + clat)
clat percentiles	the percentage of requests completed within the specified latency (in the example, 90% of requests were completed in 404 µs, and 50% in 318 µs)
IO depths	queue depth (in this example, the queue consisted of 32 requests 100% of the time)
Disk stats (read/write)	statistics from the operating system itself
ios=5808259/56	number of read/write operations performed
ticks=1883947/34	total read/write time
util=60.67%	disk utilization (percentage of time the disk was active))

In this specific test, it is evident that the drive meets the random read performance specifications stated by the manufacturer. Additionally, all latency metrics (slat, clat, lat, clat percentiles) fall within an excellent range of values, indicating that the SSD is in good condition. Furthermore, the drive’s utilization during the test (util) indicates that the drive was “idle” for nearly half of the test duration. We are running the test with a queue of 32 requests because a queue of a single request, which is also specified by the manufacturer, has no practical significance on servers.

Random entry

Command for testing random writing:
fio --name=4k-rnd-write --rw=randwrite --directory=/fio --direct=1 --bs=4k --ioengine=libaio --iodepth=32 --runtime=60 --numjobs=1 --time_based --size=5G

• --name=4k-rnd-write - test name
• --rw=randwrite - test type (randwrite - random entry)
• --directory=/fio - working directory
• --direct=1 - direct disk access, bypassing the system cache
• --bs=4k - block size
• --ioengine=libaio - mechanism for interacting with the system kernel
• --iodepth=32 - queue depth
• --runtime=60 - time allotted for the test
• --numjobs=1 - number of test threads
• --time_based - end the test after the specified time has elapsed
• --size=5G - test file size

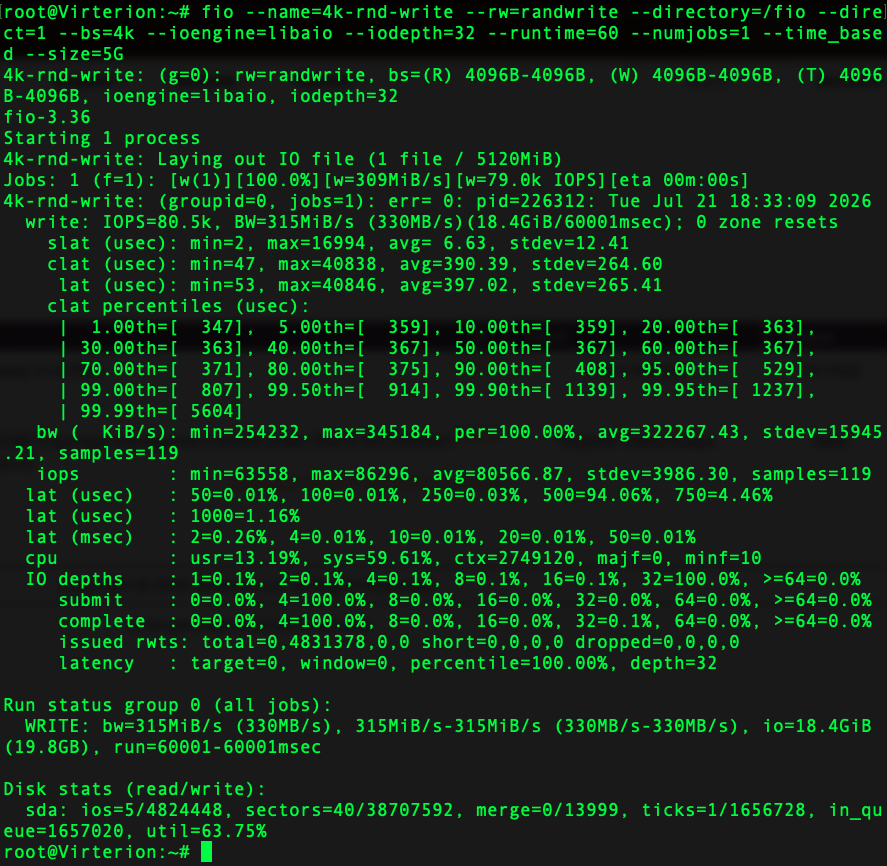

Key metrics:

IOPS=80.5k	number of write operations per second
BW=315MiB/s	write speed (330 МБ/с)
18.4GiB/60001msec	18.4 GiB written in 60 seconds
slat	the time it takes for the processor to prepare the request
clat	delay caused by the disk itself processing the request
clat percentiles	what percentage of requests were processed during a given period
IO depths	queue depth (in this example, the queue consisted of 32 requests 100% of the time)

All settings are exactly the same as in the random read test. But this time, we see a difference from the manufacturer’s claimed specifications (80.5k IOPS instead of the claimed 88k IOPS). Most likely, the manufacturer ran tests that utilized the device’s cache. Our goal is to test the storage medium’s memory itself, so the example specifies a 5 GB test file size to bypass the cache. This is quite normal, since all manufacturers try to present the most impressive numbers possible.
Other metrics, latency and device utilization, are quite typical for a SATA SSD in this class.

Sequential Reading

Sequential read and sequential write tests are used to measure a storage device's maximum linear speed and throughput. The command to run the sequential read test is:
fio --name=seq-read --rw=read --directory=/fio --ioengine=libaio --bs=1M --size=5G --iodepth=32 --numjobs=1 --direct=1 --runtime=60 --time_based

• --name=seq-read - test name
• --rw=read - test type (read - sequential reading)
• --directory=/fio - working directory
• --direct=1 - direct disk access, bypassing the system cache
• --bs=1M - block size
• --ioengine=libaio - mechanism for interacting with the system kernel
• --iodepth=32 - queue depth
• --runtime=60 - time allotted for the test
• --numjobs=1 - number of test threads
• --time_based - end the test after the specified time has elapsed
• --size=5G - test file size

The block size (bs) is set higher than in random read and write tests to reduce the overhead associated with processing requests and to measure the actual speed and throughput of the storage device. The ioengine and iodepth parameters can be omitted if you are testing an HDD. The size of the test file (size) can be increased if you are testing an NVMe SSD to bypass the cache.

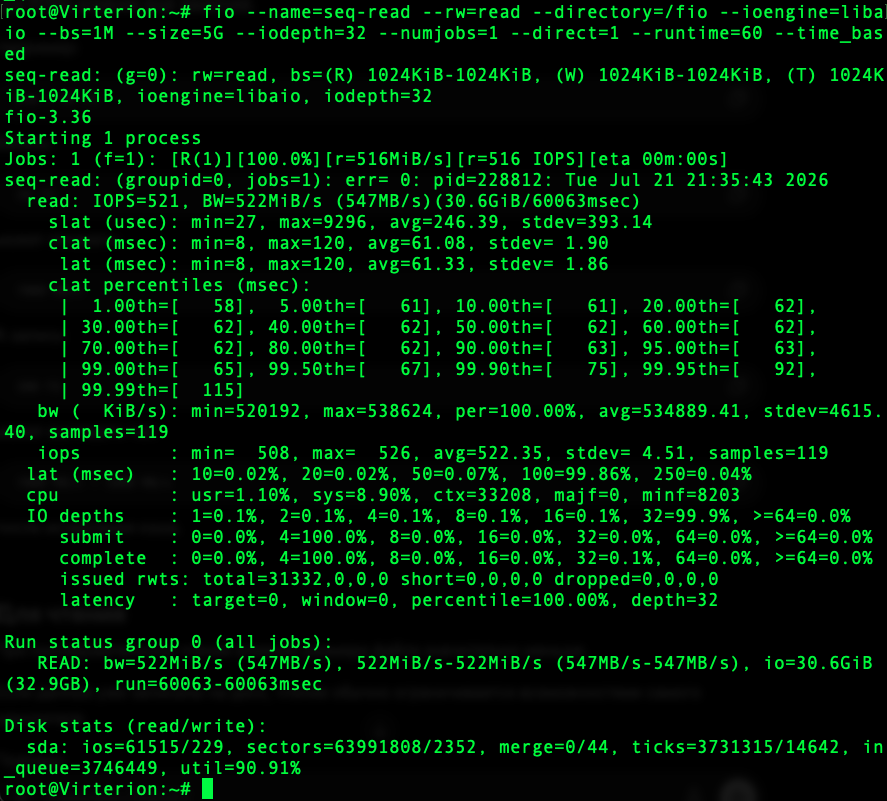

Key metrics:

IOPS=521	number of read operations per second during the test
BW=522MiB/s	reading speed (547 MB/s)
30.6GiB/60063msec	30.6 GiB read in 60 seconds
clat	execution delay
clat percentiles	what percentage of requests were processed during a given period
ios=61515/229	number of read/write operations
ticks=3731315	The disk was active for ~3.73 seconds
in_queue=3746449	total time in line
util=90.91%	disk wear during the test

The test results confirmed the manufacturer's claimed sequential read speed specifications (540 MB/s claimed, 547 MB/s test result).

Sequential Writing

Command for testing sequential write speed:
fio --name=seq-write --rw=write --directory=/fio --bs=1M --ioengine=libaio --size=5G --iodepth=32 --numjobs=1 --direct=1 --runtime=60 --time_based

• --name=seq-write - test name
• --rw=write - test type (write - sequential writing)
• --directory=/fio - working directory
• --direct=1 - direct disk access, bypassing the system cache
• --bs=1M - block size
• --ioengine=libaio - asynchronous I/O
• --iodepth=32 - queue depth
• --runtime=60 - time allotted for the test
• --numjobs=1 - number of test threads
• --time_based - end the test after the specified time has elapsed
• --size=5G - test file size

For HDDs, the queue (iodepth) can be removed or reduced to 4. For NVMe SSDs, the queue depth (iodepth) can be increased to 64, the file size (size) to 20–30 GB (depending on the cache size), and the number of threads (numjobs) to 4.

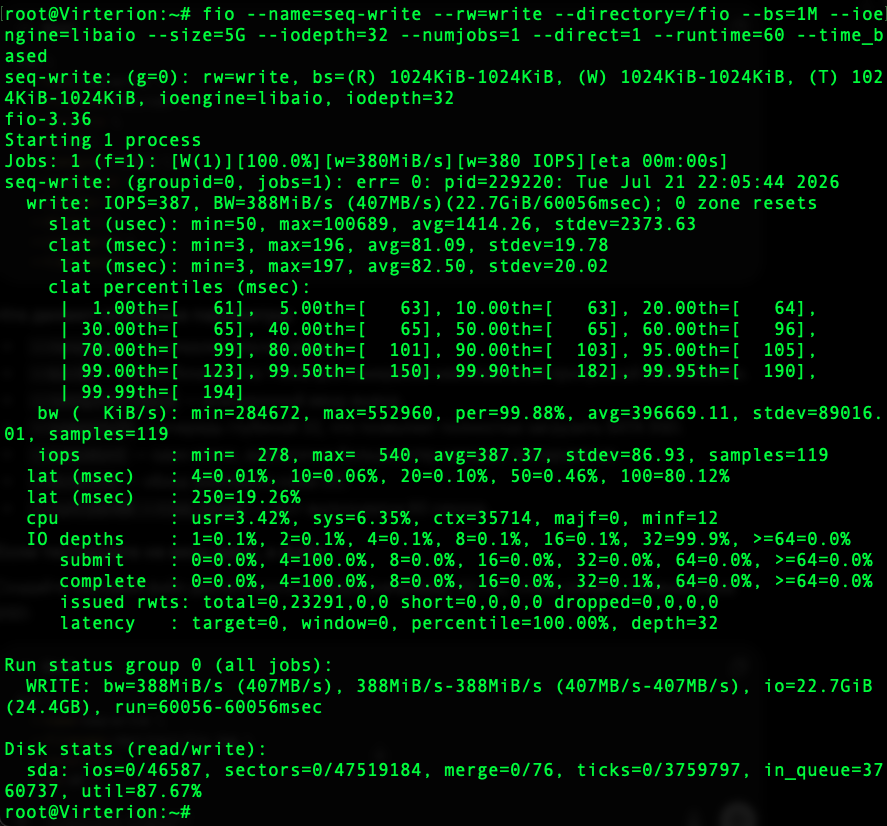

All the fields and their values are the same as in the sequential read test. The most interesting metric is the write speed itself (407 MB/s). It differs significantly from the advertised speed (520 MB/s), but there’s a reason the manufacturer included two asterisks next to this specification:

Generally speaking, a sequential write speed of 407 MB/s is a good figure for a SATA SSD in this class.

Conclusion

The fio utility has become the industry standard for objectively evaluating storage performance. Its value lies in the flexibility of its scenarios: the utility allows you to simulate various workloads of any complexity, including random access, multithreading, variable block sizes, and request queue depths. It is precisely because of this functionality that fio is used by professionals. Now you can independently evaluate the performance, speed, and throughput of your storage devices.
